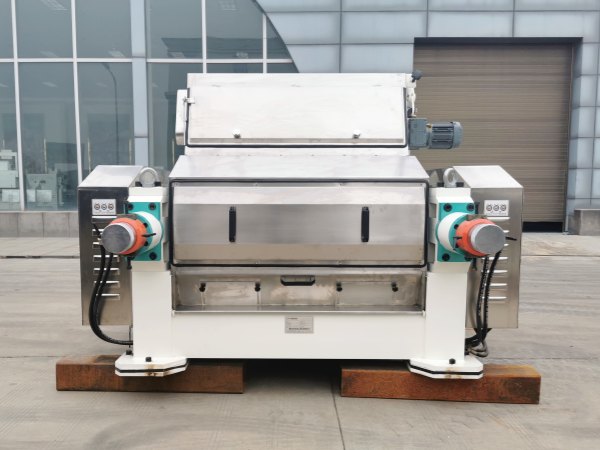

YMYP-60×80 Oat Flaking Mill
Oat Flaking Mill is designed to process oat, corn and other cereal grains into flakes through the counter-rotating roll pair that exerts compressive force on granular materials.
Oat Flaking Mill Features
1. Variable frequency speed-regulating gear motor enables precise material distribution across the entire roll length via the feeder, ensuring consistent thickness and minimal breakage in finished flakes.
2. Adjustable roll gap facilitates thickness control of cereal flakes, with dedicated grooved (rolling) rolls ensuring optimal forming stability.
3. Roll gap adjustment mechanism incorporates anti-collision protection to prevent roll surface damage during operation.
4. Enhanced operability through adjustable scrapers that remove residual materials, guaranteeing continuous trouble-free operation and uniform product quality.
5. Noise-reduced design achieved through optimized structural configuration and vibration-damping components, maintaining compliant workshop environmental standards.
End Products of Oat Flaking Mill
Oat Flaking Mill Technical Parameter
|
Type |
Capacity(t/h) |
Main Motor Power(kw) |
Feeding Motor Power(kw) |
Thickness(mm) |
Speed(r/min) |
Weight(kg) |
Dimension(mm) |
|
YMYP-60×80 |
2-2.5 |
18.5×2 |
0.55 |
0.3-1 |
230 |
5000 |
1725×1663×1834 |
Requirements for Raw Oats
|
Raw Material |
Moisture(%) |
Brokens(%) |
Impurity(%) |
Color, Smell |
|
Oat |
≤14.0 |
≤3.0 |
≤1.5: mineral≤0.2 |
Normal |
Finished Oat Flakes
|
Finished Product |
Moisture(%) |
Unhulled Particle(%) |
Quality Guarantee(month) |
Color, Smell |
|
Oat Flake |
≤12.0 |
≤0.5 |
12 |
Normal |
