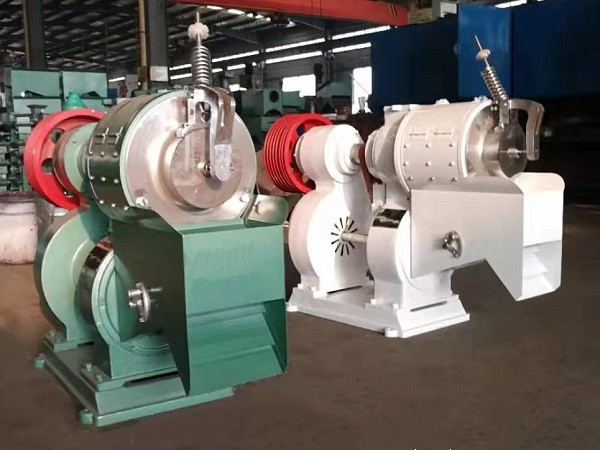

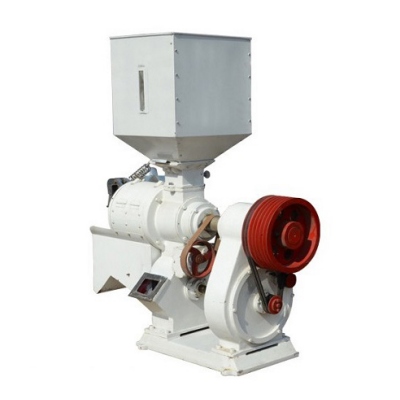

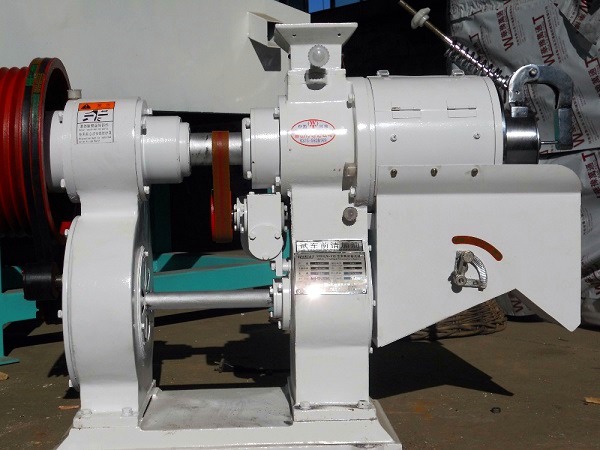

YMHLN Series Maize Peeler and Polisher

  • YMHLN Series Maize Peeler and Polisher

Short Description:

YMHLN Series Maize Peeler and Polisher mainly has corn peeling, wheat peeling and paddy peeling and polishing functions. The machine can process 1-6Ton of corn, wheat, sorghum and paddy per hour.


Product Detail

Production Case

YMHLN Series Maize Peeler and Polisher is mainly used in corn peeling, wheat peeling, paddy and sorghum peeling. It is suitable for food processing factories in corn, wheat and sorghum peeling.



Working Principle:
After cleaning up, the unprocessed corn enters into the peeling chamber of YMHLN Maize Peeler and Polisher through feeding port. By control the feeding speed at the feeding port and the pressure of the pressure valve, we make the peeling chamber have some pressure. The machine squeezes, peels, degerminates, removes impurities and polishes the material between the rotary roller and the screen. And under the pneumatic effect, the corn kernels and the bran separate automatically and then we can get qualified corn kernels. The machine is internally installed efficient air suction chamber which can remove the skin and impurities from the peeling process.



Features:
1. YMHLN Series Corn Peeling and Polishing Machine can remove corn skin, impurities and corn germs effectively and make the corn surface smooth and bright.
2. Internally installed efficient winnowing and dust removing blower.
3. The discharging port of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve and ensure the effective friction with alloy roller so as to realize better peeling effect.

Finished Product


Technical Parameter

Model

Capacity(t/h)

Power(kw)

Spindle Speed(r/min)

Blower Speed(r/min)

Weight(kg)

Dimension(mm)

YMHLN-115

1-1.5

15

940-1000

4200-4400

240

1050*1020*1150

YMHLN-150

1.5-2

18.5-22

940-1000

3000-3050

320

1189*1020*1430

YMHLN-200

2-2.5

22-30

940-1000

3000-3100

360

1313*1020*1440
