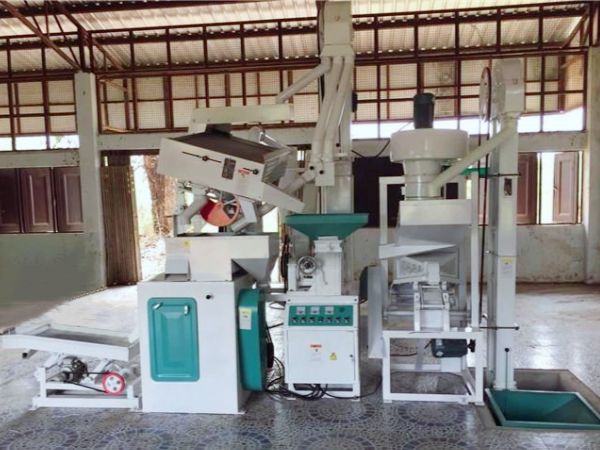

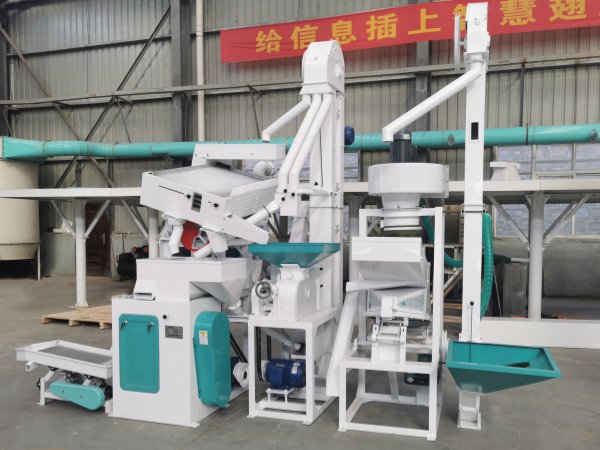

WT Series 15TPD Complete Rice Milling Machine
The WT-15B Complete Rice Milling Processing System is an integrated paddy processing equipment that combines grain cleaning & impurity removal, stone extraction, husking, husk/brown rice separation, rice milling, and broken rice grading.
Working Principle
The raw rice is poured into charging hopper and then elevated to cleaning screen by the single elevator. The rice without big impurities is sent to destoner to remove impurities heavier than the rice and a part of light impurities and dust. The clean rice is conveyed to rubber covered roller hulling machine by the duplex elevator to be hulled. The big husks are separated out and conveyed out of the machine or collected by the cyclone and sent to the grinder; the mixture is conveyed by duplex elevator to the gravity separator which separates out three materials. Those with most unhulled rice is flowed back through the tube to the duplex elevator which conveys the materials to the rice huller; the bran and rice mixture is conveyed by the duplex elevator to the gravity separator again; the pure rice is directly sent to the brown rice bucket and goes into the rice milling machine. The fine husks in milling chamber are collected by cyclone through the wind blower and sent to the grinder to be ground into finished rice and discharged through the outlet. The milling chamber features strong air suction for reduced grain temperature, bran-free operation, and produces crystal-clear rice with translucent quality.
Performance Advantages
1. Low-temperature milling process preserves grain quality.
2. Zero bran powder contamination ensures premium appearance.
3. Modular design allows flexible production line expansion.
4. Integrated automated elevators and electrical control system enabling fully automated operation.
5. Customizable configurations available including mist polishing machines, color sorters, and packaging equipment.
6. Ideal equipment for establishing small-scale processing enterprises.
Finished Product
Technical Parameter
|
Type |
Capacity(kg/h) |
Weight(kg) |
Power(kw) |
Milled Rice Rate(%) |
Dimension(mm) |
|
WT-15B |
700-1000 |
1400 |
23 |
71 |
2800×1500×2900 |
