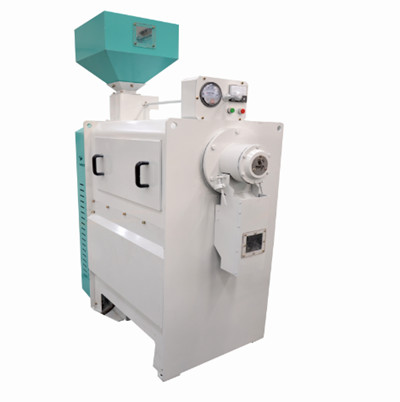

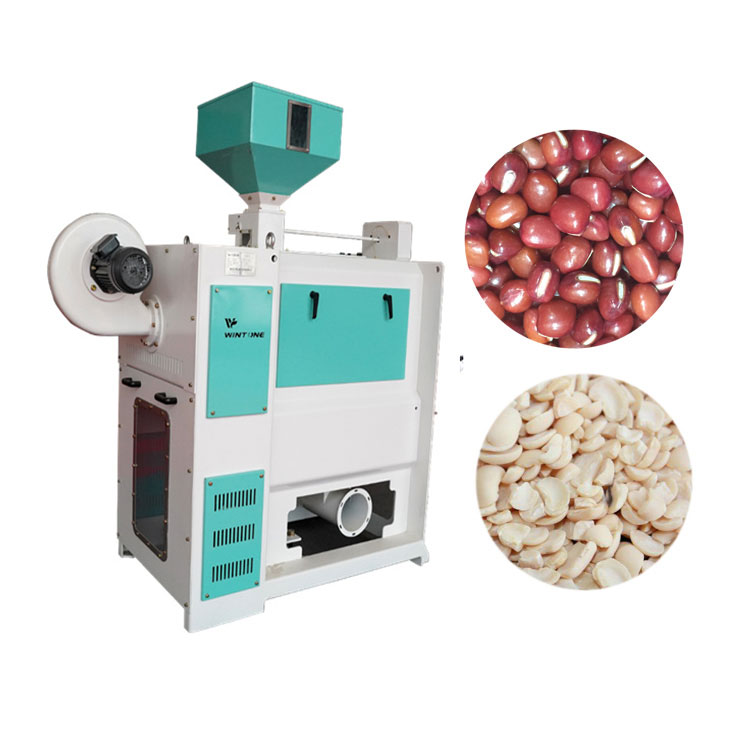

MTPS Small Red Bean Peeling Machine
Small red beans are very similar in shape and size to mung beans, their skins are tightly adhered to the kernels. Removing the skins is necessary before processing red beans into food products. Win Tone machinery' s MTPS Small Red Bean Peeling Machine is a professional peeling device designed for small red beans. It can quickly and efficiently remove the outer skins, improving processing efficiency and product quality.
Working Pricinple
The MTPS Small Red Bean Peeling Machine adopts a dry peeling process. Red beans enter the peeling chamber through the feed inlet, and the rotating emery roller with abrasive particles on its surface removes the outer skin, separating the husk from the kernel. Meanwhile, friction occurs between the beans themselves as well as between the beans and the screen mesh. A built-in fan generates negative pressure airflow to automatically separate the husks from the intact beans.
Features
1. High Yield & Efficiency: Processing capacity of 1-8 tons/hour, single-pass peeling rate of 60%, and double-pass peeling rate ≥90%.
2. Enhanced Quality: Peeled adzuki beans maintain high integrity, smooth surface, and fine texture, meeting food processing standards.
3. Reduced Loss: Precise control minimizes bean breakage, ensuring a peeling completeness rate ≥90%.
4. Smart Adjustment: Adjustable drum speed and friction gap for different bean varieties (large/small), ensuring high-quality output.
Finished Product
Technical Parameter
|
Model |
Capacity(t/h) |
Power(kw) |
Size(L*W*H)(mm) |
|
MTPS-18 |
2-2.5 |
18.5-22＋2.2 |
1935×735×1892 |
|
MTPS-25 |
3-4 |
22-30＋2.2 |
2013×693×2222 |
|
MTPS-30 |
4-6 |
37-45＋2.2 |
2191×950×2222 |
|
MTPS-25*2 |
6-8 |
44-60＋3 |
2033×1450×2222 |
|
MTPS-30*2 |
8-12 |
74-90＋3 |
2332×1450×2222 |
