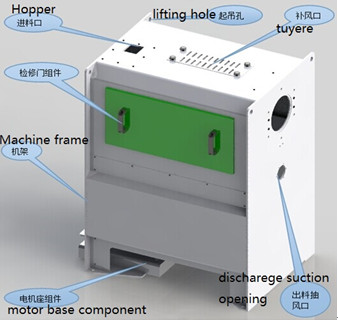

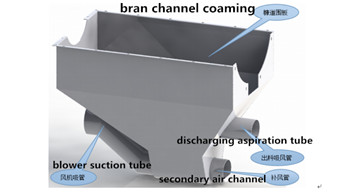

MTPS18B chickpea peeling machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.
First, chickpeas are sent to the propelling chamber through charging regulation device where the spiral pusher conveys them to emery roll whose sharp appearance cuts the bran with some speed, making the corn particles rub against the sieve plate, so as to peel the materials. The outlet is equipped with air suction inlet to further cool down the bean and clean the finished product for the second time.
Chickpea peeling machine technical parameter:
Model
|
Emery roll diameter
(mm)
|
Emery roll length
(mm)
|
Principle axis revolving speed
(r/min)
|
Quantity
(t/h)
|
Power
(kW)
|
Boundary dimension
(L*W*H)
(mm)
|
MTPS18B
|
φ180
|
660
|
1300
|
1~1.5
|
22
|
1410×1220×2030
|
|
