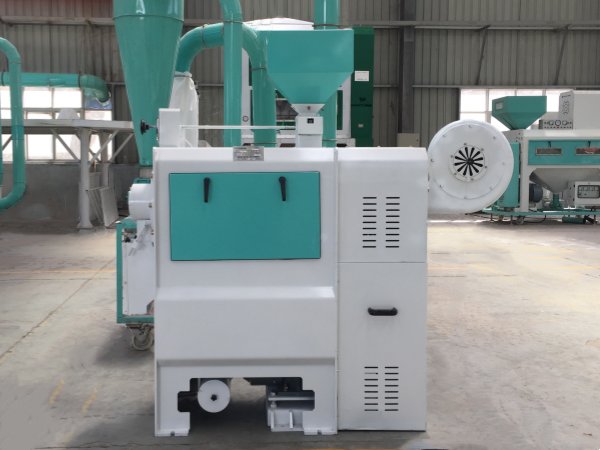

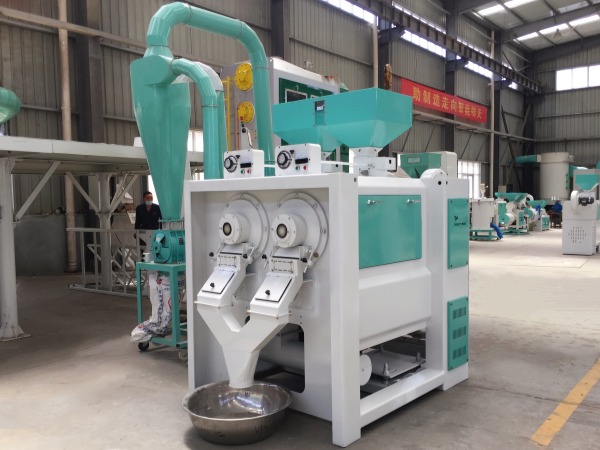

MTPS Series Iron Roll Millet Polishing Equipment
MTPS Series Iron Roll Millet Polishing Equipment is suitable for millet whitening and polishing after hulling section and is used with other equipments in rice mill factories. It has the outstanding features of high yield, low broken rate, good polishing effect high production efficiency and low noise.
Working Principle
MTPS Series Iron Roll Millet Polishing Machine adopts axial direction double inlet air design and is equipped with strong air draft system, which ensures low millet temperature and good bran discharging effect.The feeding port spile control belongs to gear drive mechanism, which has easy and accurate operation in feeding. Unique power-driven machine rack makes it have compact structure, small floor space, easy adjustment and maintenance. It is equipped with wind pressure monitoring device, which is convenient to control the negative pressure inside of the machine on-line and keep the negative pressure of the milling chamber stable.
Finished Product
Technical Parameter
|
Model |
Capacity(t/h) |
Static Pressure(pa) |
Air Volume(m³/h) |
Power(kw) |
Weight(kg) |
Dimension(mm) |
|
MTPS-18 |
1.5 |
150-200 |
2200-3300 |
18.5-22 |
435 |
2100×800×1900 |
