LTF Series Flaxseeds Dehulling Equipment

  • LTF Series Flaxseeds Dehulling Equipment

Short Description:

After the separation of flaxseed hull and kernel, the hull can be used to extract gum and lignans, while the kernel can be processed into flaxseed oil. The cake


Product Detail

Production Case

After the separation of flaxseed hull and kernel, the hull can be used to extract gum and lignans, while the kernel can be processed into flaxseed oil. The cake remaining after oil extraction can be made into high-quality, high-protein food products. Additionally, flaxseed kernels can also be directly used in food production.
Win Tone' s LTF series flaxseed hulling machine addresses the issues commonly found in existing dry hulling equipment, such as high breakage rate, excessive dust, and significant loss. It achieves efficient and specialized hulling processing for flaxseed.



Working Principle
The cleaned flaxseeds enter the shelling chamber, where the shells are rapidly stripped off by the high-speed rotating centrifugal disc. The shelled seeds are then separated from the hulls through a sieve or an airflow separation device. In flaxseed shelling processing, a combined process of multi-stage sieving and wind sorting is typically employed to ensure the purity of the shelled seeds.



Features
1. Effective Peeling Performance
The LTF series flaxseed peeling machine can accurately and efficiently remove the outer husk of flaxseeds, ensuring high material utilization and quality.
2. Energy Saving & Reduced Consumption
The LTF series flaxseed peeling machine adopts a graded husk-removal process, allowing for adjustable air volume, which reduces energy consumption during peeling and lowers production costs.
3. Stable Performance
The LTF series flaxseed peeling machine is manufactured with high-quality materials and advanced technology, ensuring stable operation and a long service life.
4. Intelligent Equipment
The electrical control system utilizes PLC programming for automated, AI-assisted operation.

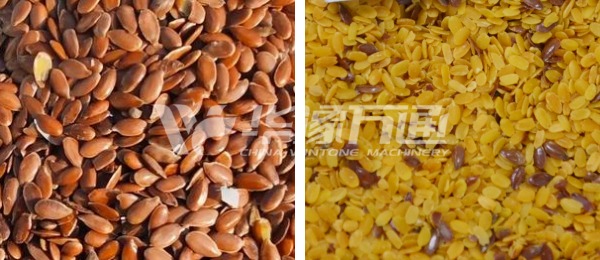

Finished Product


Technical Parameter

Type

Capacity(t/h)

Power(kw)

Dimension(mm)

LTF30

0.2-0.3

1.5+0.2

920×710×1556

LTF35Q

2-3

7.5+0.2

920×871×2384
