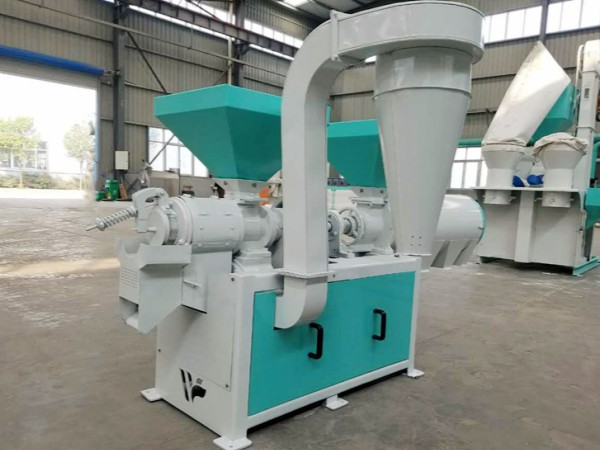

HTZ28-5B Corn Peeling and Flour Milling Machine

  • HTZ28-5B Corn Peeling and Flour Milling Machine

Short Description:

HTZ28-5B Corn Peeling and Flour Milling Machine is integrates corn peeling, polishing, milling, finished product grading and windblowing functions. It is suitable for farms, market towns, grain offices, small and medium-sized grain processing enterprises and professional grain processing households.


Product Detail

Production Case

HTZ28-5B Corn Peeling & Milling Machine consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The production capacity is 500kg/h, and an 11kw motor can drive the entire machine to operate. It is suitable for small size of food processing factories in corn, wheat and sorghum peeling, corn grits and flour milling.



Working Principle
This machine consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The clean raw grain is conveyed to the feeding port for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process. Kernel size can be adjusted by grits making bolt. Grits granularity can be controlled by adjusting the diameter between the two fluted discs.



Features:
1. Easy operation, family use, simple structure, safety, reliability.
2. High quality of the end products, less dust, low power consumption.
3. Adjustable gears to meet your different needs.
4. It can be driven by diesel engine to meet the requirements of the small workshops in the remote areas.

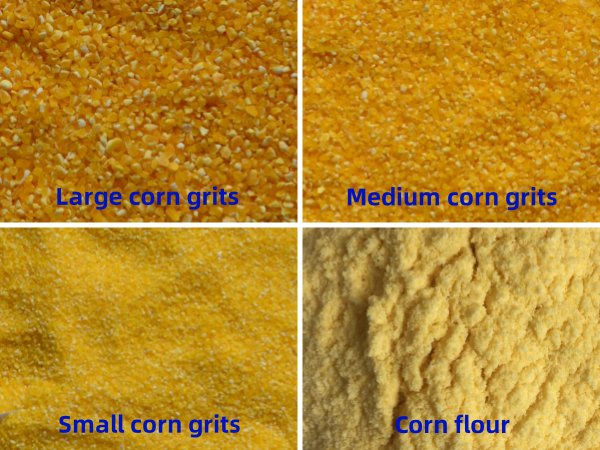

Finished Product


Technical Parameter

Type

Capacity(kg/h)

Power(kw)

Voltage(v)

Spindle Speed(r/min)

Weight(kg)

Dimension(mm)

HTZ28-5B

corn peeling

corn grits

corn flour

11

380

1000-1200

350

2200×900×1200

500

500

300
