    • Soybean Peeling Machine
      Writer: Soybean Peeling Machine From: Soybean Peeling Machine
      Size: Big Medium Small Time: 2016-05-04 14:21:02

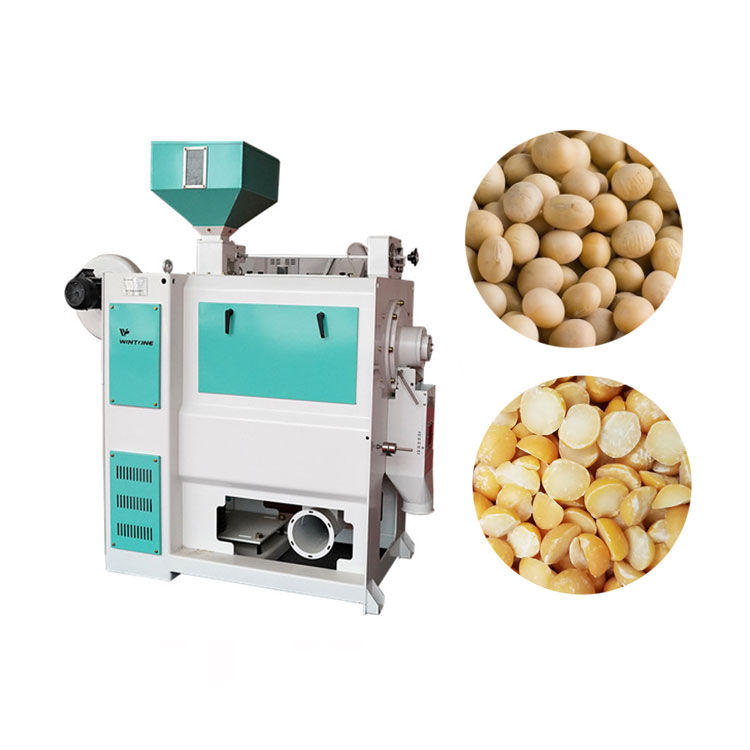

       bean bran removing machine.jpg



      MTPS Soybean Peeling Machine can be used as the supporting equipment in bean processing technology or as the single equipment. MTPS Soybean Peeling Machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.



      The material is conveyed by the screw propeller to the peeling chamber which is at the machine’s core part. It utilizes the emery with high speed rotation and cuts and rubs the beans skin continuously, which destroys the bonding strength among corn skin, material skin and endosperm, and makes corn skin separated gradually. Then the material is conveyed to the outlet of the equipment and the peeling process is finished.

      The machine is used in the peeling process for bean processing and primary and further peeling process for food processing enterprises.

      It can be used in series or in parallel in complete processing line according to technological demand.
      Soybean Peeling Machine can process red bean, kidney bean, soybean, mung bean, lentil ; it is suitable for different beans peeling when changed related technical parameter.


      Soybean Peeling Machine has the aspiration and dust removal system outside, which ensures the best sanitary conditions.
      MTPS Soybean Peeling Machine connects with the efficient aspiration system, which ensures the reliable discharging of corn bran. It has the powerful cooling system and ensures the high sanitation standard.
      It is easily maintained and operated.
      It has quick-replaceable sieve plate and other parts. The durable emery roller and less abrasion parts make the equipment easily operated and maintained.


      MTPS Soybean Peeling Machine technical parameter:





      Model

      Emery Roll Diameter

      (mm)

      Emery Roll Length

      (mm)

      Spindle Speed

      r/min

      Yield

      t/h

      Power

      kW

      Air Volume

      m³/h

      Size

      (L*W*H)

      (mm)

      MTPS-18D/A

      Φ180

      660

      1300

      11.5

      22



      1370×700×1900

      MTPS-18D/B

      Φ180

      660

      1300

      11.5

      22

      1500-1800

      1410×1220×2030

      MTPS-25D/A

      Φ240

      660

      1050

      2-3

      30



      1515×660×2100

      MTPS-25D/B

      Φ240

      660

      1050

      2-3

      30

      1800-2100

      1515×1220×2100



      Soybean Peeling Machine can process various kinds of beans:

       bean bran removing machine.jpg
