    • Oat Peeling Machine
      Writer: Oat Peeling Machine From: Oat Peeling Machine
      Size: Big Medium Small Time: 2016-04-26 15:38:22

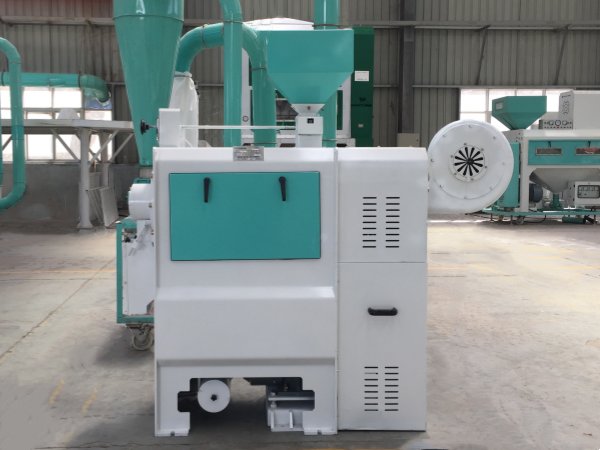

      oat peeling machine.jpg



      Oat Peeling Machine is used as the supporting equipment in oat processing technology or as the single equipment. Oat peeling machine has the outstanding features of high yield and low breakage rate. MTPS oat peeling and awn removing machine can remove oat bran and awn. It is the ideal supporting equipment in modern oat processing plants. It has the features of high yield and low breakage rate.


      Features:
      ★Axial inlet air design with strong air draft system, low temperature, good bran discharging capability.
      ★Toothed gear drive device for control of inlet plugboard, convenient and precise operation.
      ★Outlet is equipped with cleaning device for further decreasing the temperature
      and cleaning the material.
      ★Special motor rack, compact structure, small dimension, easy adjustment, convenient maintenance.
      ★Air pressure monitor device to control negative pressure at a stable level in the machine.


      Application:
      The machine is mainly used for oat peeling in the oat processing factory.


      Oat peeling machine technical parameter:





      Model


      Emery Roll Diameter
      Emery Roll Length
      Spindle Speed
      Yield
      Power
      Air Volume
      Size
      (mm)
      (mm)
      r/min
      t/h
      kW
      m³/h
      (L*W*H)






      (mm)
      MTPS-25YM
      φ246
      690
      800
      2~3
      11-15
      2200-2500
      1450×800×1940
      (Grade 6)
