      Sesame processing plant introduction:
      Sesame peeling machine or sesame processing plant can peel white sesame seed or black sesame seed. This plant technology needs alkaline water to soak the raw material and separate sesame skin and kernel by washing. This is the most advanced technology that can wash sesame kernel in sesame peeling process.Win Tone sesame processing plant has a reputation for being the most trustworthy, user-friendly and efficient sesame processing machinery available. Sesame processing plant is designed to peel sesame seed and improve sesame utilization value.

      sesame peeling machine.jpg


      Application for caustic soda of food grade in sesame peeling:
      Under the conditions of keeping peeled sesame taste and flavor, the best amount of alkali addition is 1.4%~1.5%; under this amount of alkali addition, the best washing time for alkali-free residue is 30 minutes.


      Sesame peeling machine, sesame processing plant process procedures:
      Sesame peeling machine uses wet technological process, soaks the sesame seeds, peels and separates the sesame skin and the kernels.


      sesame processing plant sesame peeling.jpg



      Cleaning: to remove the big and small impurities, stones and sand by grain cleaning and destoner machine; to remove the metallics by magnetic separation equipment so as to improve sesame purity.
      Removing the sesame that is not full: to remove by rotary sieve.
      Color sorter: to remove the kernels with different colors by computer color sorter.
      Sesame grading: to select similar sesame by classifying equipment

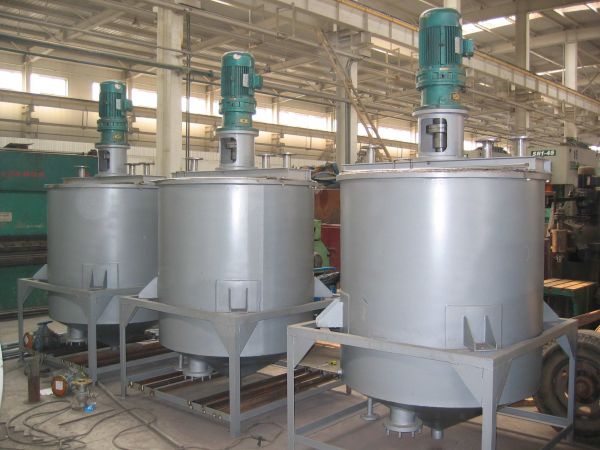

      Soaking: to convey sesame to blender by transmitting tube according to 1.3% caustic soda flakes and sesame gravity and soak sesame for 20-30 minutes in water.

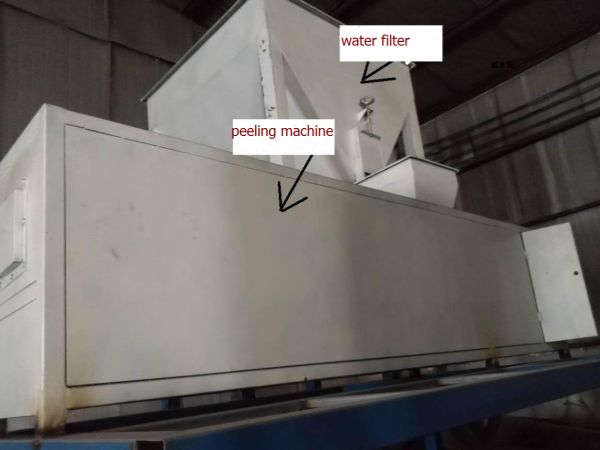

      Peeling: to adopt vertical cylinder peeler and make sesame have relative movement in the container. To remove the sesame skin by making use of the friction among the sesame seeds.
      Separation of skin and kernel: to make the sesame skin soften by adopting the best soaking technology. To separate the skin and kernel by using the volume difference between sesame skin and kernel. In the automatic separator with sinking structure, the water flow can take sesame skin away and kernels are left.

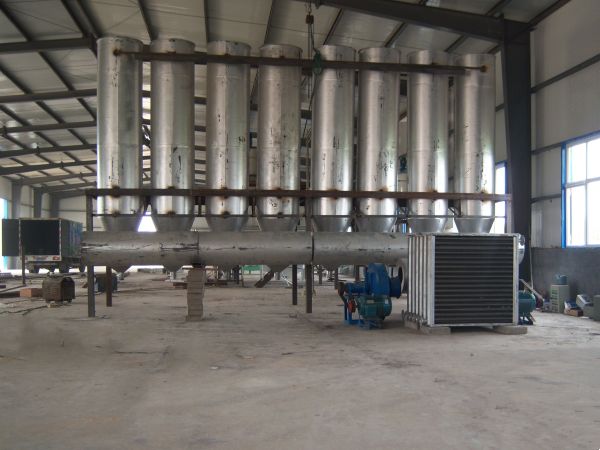

      Drying: Sesame and water gravity ratio: 1:2; throwing for 15-20 minutes, drying and entering into centrifugal machine; drying for 5-10 minutes under 120℃; then conveying finished products to the end products warehouse.


      sesame processing plant sesame peeling.jpg


      Sesame peeling machine, sesame processing plant features:
      1. It reduces manual operation and increases automatic coordinated process operation.
      2. It improves the working environment, prevents the phenomenon of emitting, dropping and leaking, purifies working environment and protects operators physical and psychological health.
      3. It can deal with washing and purifying correctly, reduce production cost and guarantee peeled sesame quality safety.
      4. It peels sesame according to customers’ requirements and separates the finished products from color, taste and ingredient, which provides high grade end products for further food application and increases its social benefits.

      Requirements for raw materials
      pure sesame kernel rate: ≥ 98%
      impurity:≤0.5%

      Dehulled sesame seed quality standard
      1).Appearance: The surface is pure, white and glossy, with full kernels and without the mildew.
      2).Smell: Pure sesame seed fragrance without any unusual smell.
      3).Moisture: ≤ 5%;
      4).Impurity: ≤ 0.1%
      5).Hull remaining rate: ≤0.2%
      6).Dehulling rate:≥99%
      7).Sesame kernel yield rate: ≥80%
      peeled sesame.jpg



      Technical parameter:

      Model

      Capacity

      Power

      Voltage(v)

      Plant Requirements(m)

      Electrothermal Furnace



      (T/24h)

      (kw)



      WT-200

      20

      49

      380/50HZ

      25*10*6.5

      2T/075TYPR/800TYPE/160KW



      WT-300

      30

      53

      380

      27*10*6.5

      2T/075TYPR/1000TYPE/260KW



      WT-400

      40

      80

      380

      30*11*6.5

      4T/100TYPR



      WT-500

      50

      95

      380

      32*12*7

      4T/100TYPR



      WT-600

      60

      105

      380

      32*12*7

      6T/120TYPR



        WT-800

      80

      156

      380

      33*12*7

      10T/120TYPR



      WT-1000

      100

      169

      380

      35*12*7

      10T/140TYPR



      WT-1200

      120

      190

      380

      37*12*7

      14T/140TYPR



      WT-1400

      140

      260

      380

      40*12*7

      16T/160TYPR
