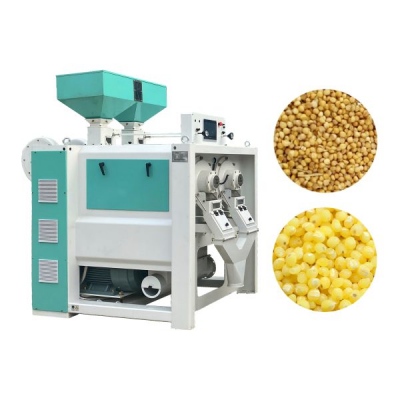

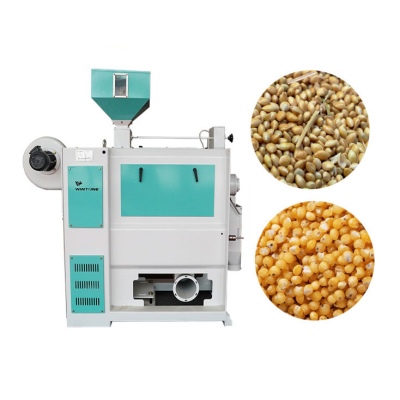

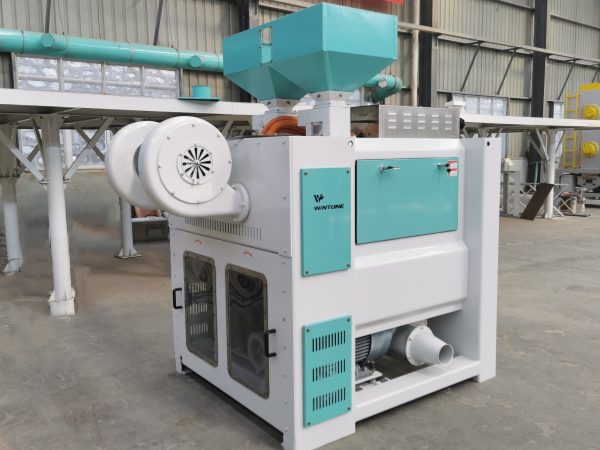

HDXM Low-Temperature Anti-Clogging Millet Rice Mill

  • HDXM Low-Temperature Anti-Clogging Millet Rice Mill

Short Description:

HDXM Low-Temperature Anti-Clogging Millet Rice Mill is suitable for millet hulling section used with other equipments in milling factories.


Product Detail

Production Case

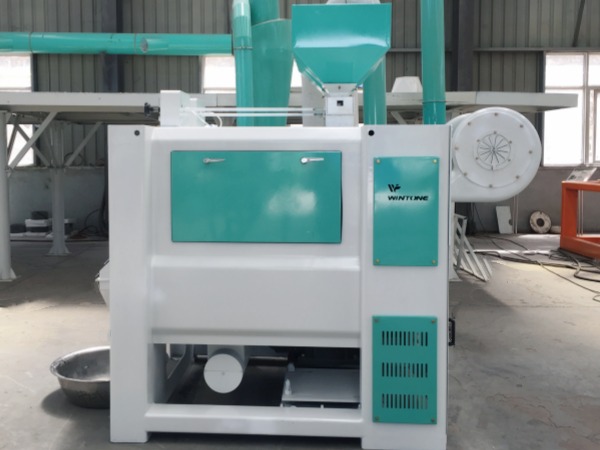

HDXM Low-Temperature Anti-Clogging Millet Rice Mill is designed for the low-temperature processing of millet and glutinous millet. Traditional vertical and horizontal millet rice mills often encounter screen clogging and paste-up issues during processing due to the waxy and oily nature of millet, leading to high power consumption, low yield, and motor overcurrent shutdowns. This machine features a short husking roller, narrow clearance, and high air pressure, effectively addressing the pain points in millet and glutinous millet processing. It is a patented product of the company.




Performance Advantages
1. Anti-Clogging & Anti-Paste Screen
The built-in main shaft fan accelerates bran and impurities removal, while the low-temperature milling design prevents bran agglomeration and screen clogging.
2. Dedicated Millet Rice Mill Emery Roller
Prevents roll sticking and overheating, ensuring superior milling performance.
3. High Yield, Low Breakage, Thorough Husking
Features a short husking roller and narrow clearance for efficient husking, minimal breakage, and clean bran removal.
4. Modular Design, Self-Aligning Bearing, Easy Maintenance
Equipped with a split-type screen frame and removable screen plates for convenient servicing and replacement.

Finished Product


Technical Parameter

Type

Capacity(t/h)

Power(kw)

Peeling Rate(%)

Dimension(mm)

HDXM18

2-3

18.5-22+2.2

95

1935×735×1892

HDXM25

3-4

22-30+2.2

95

2013×693×2222

HDXM30

4-6

37-45+2.2

95

2191×950×2222

HDXM25×2

6-8

44-60+3

95

2033×1450×2222

HDXM30×2

8-12

74-90+3

95

2332×1450×2222
